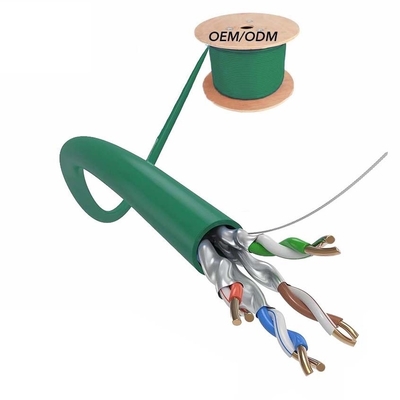

Name: Communication U/FTP Roll PriceCat7 Lte Cables De Red UTP Cat 7 Ethernet Cable CAT7 U/FTP 23AWG 100M 305M 500M 1000FT
Brand: Communication U/FTP Roll PriceCat7 Lte Cables De Red UTP Cat 7 Ethernet Cable CAT7 U/FTP 23AWG 100M 305M 500M 1000FT
SKU: CAT7 U/FTP
Rating: 5 (189 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: CAT7 U/FTP

Type: Cat 7

Number of Conductors: 8

Item: U/FTP CAT7 Cable

Conductor: Bare Copper,23 AWG

Conductor diameter: 1/0.55mm, 1/0.56mm, 1/0.57mm, 1/0.58mm (Customized Available)

Insulation: Foam PE

Pair Shield: 65U AL Foil for each pair

Drain wire: 0.4mm ,TC, CCA,TCCS

Jacket: PVC, LSZH, PE (outdoor), PVC+PE double sheath

Flame Ratardancy: CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca

Customizing: Color of PVC jacket, words on cable & packaging customized

Reference Standard: YD / T 1019-2001;ISO / IEC 11801;ANSI / TIA / EIA-568B

Informazioni di base

Model Number: CAT7 U/FTP

Termini di pagamento e spedizione

Packaging Details: Packaging Details1000 ft(305m),500M/roll

Supply Ability: 10000 Roll/Rolls per Month

Descrizione di prodotto

>>>Click Here Get The Latest Price List and Catalogue.

Type	CAT7
Shielding structure	U/FTP
Conductor	Bare Copper,23 AWG
Conductor diameter	1/0.56mm, 1/0.57mm, 1/0.58mm
Insulation	Foam PE
I.D(mm)	1.35±0.03mm
Pair Shield	65U AL Foil for each pair
Drain wire	0.4mm ,TC, CCA,TCCS
O.D(mm)	7.2±0.4mm
Jacket	PVC, LSZH, PE (outdoor), PVC+PE double sheath
Flame Ratardancy	CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
Color	As client’s request
Length	305m(1000ft )/Drum, 500m/Drum
Test Reference Standard	TIA/EIA 568-C.2; ISO11801 Class F,100% Passed the FLUKE 90M link and 100M channel
Customizing	Color of PVC jacket, words on cable & packaging customized on customers' request
Max Frequency	Standard 600MHZ, Dehui production can be up to 750MHZ

Dehui Cable Co., Ltd. is located in Shatian Town, Dongguan City, Guangdong Province. It specializes in R&D and production of a
full range of oxygen-free copper network cables OEM brand OEM; products include CAT7&CAT6A&CAT6&CAT5E Solid LAN Cable and Patch
Cord Cable (stranded cable), high temperature network cables and other communication copper cables, Products include UTP, F/UTP,
SF/UTP, S/FTP, U/FTP, F/FTP structures.

The CEO of the company is proficient in cable equipment and has 18 years of experience in network cable research and development.

At the same time, 6 R & D personnel were introduced from the Japanese network cable factory, and the advanced production
technology and management experience of the Japanese network cable were used to meet the needs of high-performance products. All
of our products are 100% tested by FLUKE.

The company has 2 relatively advanced ￠65mm solid core series production lines, 2 four-layer co-extrusion physical foaming production lines, 30 ￠500mm reverse twisting and twisting equipment, 3 ￠90mm external extrusion production lines, and ￠800mm total twisting cable equipment 4 sets, and various auxiliary production equipment. The company's network cable production equipment is independently produced and transformed. For the price, our quotation is more competitive than other suppliers such as trading companies, because our factory produces and sells directly by ourselves. In terms of production capacity, we can produce 20 million meters of cables per month, which will ensure you timely delivery.

Q1: Are you a original manufacturer?

A: Yes, We are a manufacturer specialized in network cables for more than 18 years.

Q2: Can your factory customize the cable according to the reference sample or data sheet?
A: Yes, We provide professional network cable OEM & ODM services. And at the competitive price to achieve the quality comparable tointernational brands.

Q3. What's your sample delivery time and bulk lead time ?
A: Sample lead time is about 7 days

B: Bulk order lead time 10-20 days after receipt deposit ,Depends on the quantity of the order.

Q4. How can you guarantee the quality of your products?
A:We will offer 3 solutions for customer's consideration. 1. We will send pre-production sample for customer's approval and testing. We will only can process production after get all approved. 2. You are welcome to arrange the order inspection or testing by third-party or agent before delivery. 3. We support small trial orders to check the quality if can match customer's quality standard
