Casa /Prodotti/cavo di rete cat7/Computer Networks Customized Lan Cables Direct Online 500ft CAT7 23AWG Bulk Bare Copper Solid Wire Cat7 Network Cable S/FTP Cable

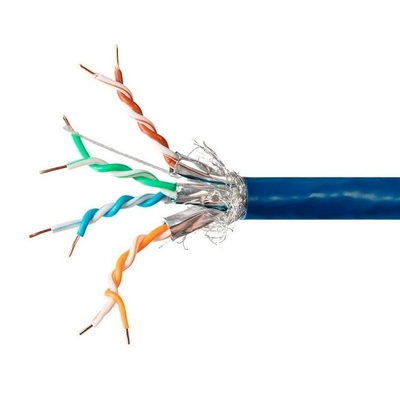

Computer Networks Customized Lan Cables Direct Online 500ft CAT7 23AWG Bulk Bare Copper Solid Wire Cat7 Network Cable S/FTP Cable

100 Boxes
MOQ
$38.00(100 - 499 Boxes) $30.00(500 - 999 Boxes) $25.00(>=1000 Boxes)
prezzo
Computer Networks Customized Lan Cables Direct Online 500ft CAT7 23AWG Bulk Bare Copper Solid Wire Cat7 Network Cable S/FTP Cable
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: FTP Cat7
Type: Lan Cable
Number of Conductors: 8
Color: Customized
Jacket: LSZH PVC PE
Length: Length
Insulation: HDPE
Conductor: Bare Copper/CCA
Application: Computer Networks
Certificazione: RoHS, CE, ISO9001
Specification: 4P*23AWG
Shield: Each pairs shielded by foil
Package: 305m/1000ft/pull box/wood drum
Informazioni di base
Certificazione: RoHS, CE, ISO9001
Model Number: FTP Cat7
Termini di pagamento e spedizione
Packaging Details: 305m/box 100m/roll or as your required
Supply Ability: 1000 Kilometer/Kilometers per Day
Descrizione di prodotto
Product Paramenters


Faster speed high quality CAT7 network cable
1. Cat7 cable is tested bandwidth broadband, audio and video applications, best practiced for office, home, building and construction areas installations.
2. Providing enhanced performance in any environment.
3. Suggested for long run installations for network adapters, routers, switches, DSL/modem, hubs and keystone jacks, this cable recommended where high-performance data structure is required.

CAT 7 CABLES
Conductor Material
TC/BC/CCA
Conductor diameter
0.57/0.58mm
Insulation
HPDE
Shiled
FTP/SFTP /SSTP
Number of Conductors
8
Jacket
PVC
Test
100% CONTUNUITY
Usage
Computer/Switch/Hubs/Router
Color
As client’s request
Sample
free
Length
305m
Certification
CE/RoHS/ISO9001
PRODUCT PARAMETERS
Item
CAT7 SFTP OURDOOR CABLE
Brand Name
JIANYE /OEM
No. of Cord.
4 Pair
Conductor
Material
bare copper Solid
Construction
1 / 0.585 ± 0.008 mm
Insulation
Material
PE
Thickness
0.40±0.02 mm
Diameter
0.98 ± 0.05 mm
Pair Shield
Material
Aluminum Foil
Overlap(%)
15%
Over Braid Shield
AL
128*0.12mm with jelly
Coverage(%)
60%
Jacket
Structure
PVC+PE
Thickness
PVC 0.56 ± 0.02mm + PE 0.2 ± 0.02mm
Diameter
7.5 ± 0.20 mm
Color
Optional
Mechanical Characteristics:
Test Object
Jacket
Test Material
PVC
Before Tensile Strength (kg/mm2)
≥1.4
Elongation(%)
≥1.4
Products Description
Product Information:
--- Cat7 offers extensive shielding to reduce signal attenuation.
--- Cat7 cable can support up to 10Gbps and frequencies of up to 600MHz.
--- This Category 7 cable provides universal connectivity to computers & network components, such as routers, switch boxes, network printers, network attached storage (NAS) devices, VoIP phones & PoE devices. Provides exceptional transmission performance & low signal losses.
--- This cable enables 10-Gigabit data transmission over a 4-connector twisted-pair copper cable, allowing connection distances of up to 100 meters.
--- It also proposes a new measurement for Power-Sum Alien Crosstalk to 750 MHz. Alien Crosstalk is a coupled signal in a disturbed pair arising from a signal in a neighboring cable.
--- LSZH jacket, making it non-halogenated & flame retardant
--- 23AWG durable build preserves signal quality & still manages to take up only minimal wall space
--- Shielding: 100% AL/Mylar coverage, 80% Aluminum braid
Application
Packing&Shipping

Network Cable packing :

1) 305m/1000ft wood drum
2)500M/Wooden Reel
3)Color Box and OEM Package available. 20" Container Full Load: 850boxes.  40" Container Full Load: 1700boxes.
Company Profile
Hangzhou Jianye Cable Co.,Ltd is a Professional manufacturer with more than 10 years experience in the communications cable industry in China. We can manufacture and supply coaxial cables, lan cables, fiber optic cables and the cable assembly etc,. we have 16 produce lines can supply 8*40ft containers cargo per day . some cables such as RG59,RG6 with power , cat5e ,cat6 ,cat7 ,Drop cable,ADSS cable, GYXTW cable , hot sell at south east ,Europe, America ,mid east market and good feedback.Our factory is located in Lin an Hangzhou city,only 3 hours to Shanghai and Ningbo sea Port , Convenient transportation and fast delivery .
We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We have very advanced testing machines, including Agilent, HP analyzer, OTDR... We Controls the quality constantly and strictly in order to give the best products to the users.
Our company always devotes to developing custom cables according to clients needs. We can make design for you from specification to logo , packing , look forward to working with you and getting mutual benefit in future.welcome visit us any time . thank you .
Certifications
FAQ
Our Service
1). We are a professional cable manufacturer, can offer you all the best cable solutions.
2). We can send you free sample to check our quality.
3). We are familiar with different market, can offer multi-language service.
4). We have quality control department, and after sale service.
5). Closed to the Ningbo and Shanghai port, the best logistic service.
