Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Type: Fiber Optic Cable

Length: 2-15m

Jacket: PVC Environmental Material

Certificazione: CE FCC RoHS

Warranty: 12 Months

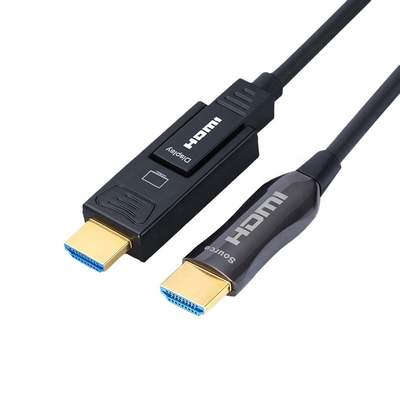

Product name: 4K 3D HDMI cable AOC Fiber Optic HDMI cable support 18.2Gbps and 60Hz

Color: Gray+Black

Material: PVC+Gold Plated

Keywords: AOC HDMI cable

Version: 2.0

MOQ: 1

Informazioni di base

Certificazione: CE FCC RoHS

Termini di pagamento e spedizione

Packaging Details: High Speed Optical Fiber HDMI Cable Support 3D 4K 60Hz 1080P Male to Male HDMI Optical Fiber Cable

Descrizione di prodotto

HDMI AOC Cable 100M 4K 3D Optic HDMI AOC fiber cable support 18.2Gbps and 60Hz

Product Description

Specification:

Product name	HDMI AOC Cable 100M 4K 3D HDMI cable AOC Fiber Optic HDMI cable support 18.2Gbps and 60Hz
keyword	4K Optical fiber HDMI cable
Plug	19-pin male to male
Outer Jacket	PVC Jacket
Conductor	oxygn-free copper
Connector	24K Gold plated
Resolution	18Gbps 4K@120Hz
Certification	CE, FCC, RoHS, HDMI adopter
Material	optic cable + Bare coppe OD:5.0mm
Length	2m to 300m

Electrical:

Quality Control	100% open and short test, 216P, 8K 60Hz and 3D test
Voltage	DC 300V 5MΩ /10ms
Insulation resistance	10M minimum
Contact resistance	2Ω Maximum
Working temperature	-25° C - 80° C
Data transfer rate	18Gbps maximum
Differential impedance	100± 10Ω (TDR)

Features and structure of HDMI AOC cable:

- HDMI AOC cable is a hybrid active optical fiber composed of four multimode fiber and seven copper cables

- Can directly transmit high resolution, lossless 4K@120HZ ultra-high-definition video directly

- Center conductor: high quality digital signal delivered by oxygen-free copper

- Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability

- Inner shield: 100% Aluminum/Mylar foil shield, prevent high frequency noises and interference

- Outer shield: 95% copper braid shield, prevents most low frequency noises and interference
