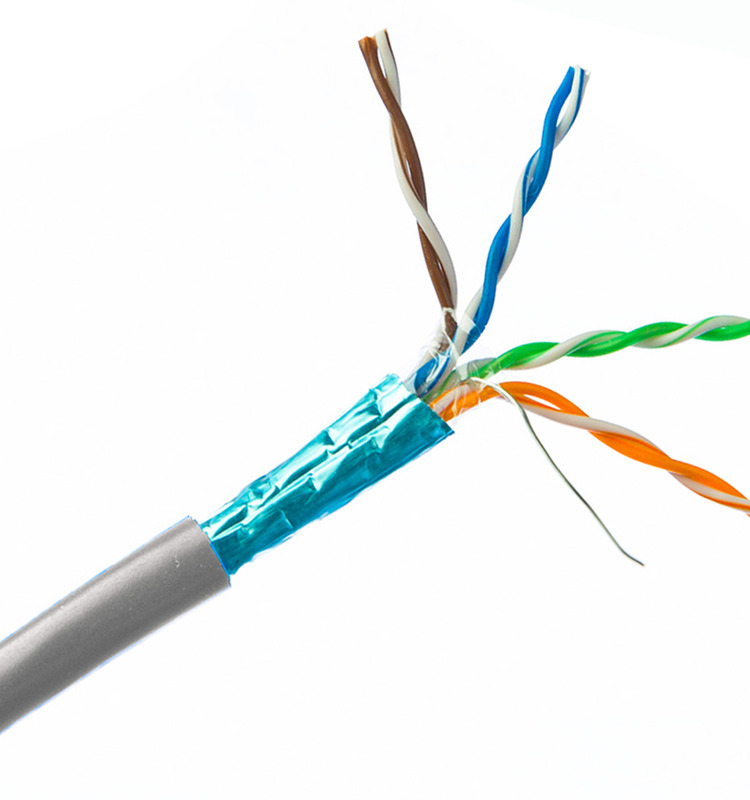

Bare Copper Cat6 Cable Conductor Shielded Networking Cable Cat6 FTP Cable

Inner conductor Ø:

Conductor material:

Core insulation:

Color Code:

Screen over stranding element:

Outer sheath material:

Sheath thickness:

Outer diameter:

24 AWG(0.51 mm)

Solid copper

HDPE (High density Polyethylene)

Pair 1: White-Blue

Pair 2: White-Orange

Pair 3: White-Green

Pair 4: White-Brown

Aluminium Foil

PVC

0.55 mm

7.4 mm

Length:

Cable weight:

Wire size:

Overall diameter of insulation:

Overall outside diameter:

305 m/1000 ft

15~16 kg

23AWG (Ø 0.575 mm)

1.1 mm

6.1 mm

Maximum operating temperature:

Operating Temperature Range:

Installation temperature:

Minimum bending radius:

Maximum pulling force

70℃

0℃ to 60℃

-20℃ to 60℃

4 x cable diameter

100 N

ANSI/TIA Category

Characteristic Impedance (Frequency: 1-200 MHz)

DC Resistance Unbalance, maximum

DC Resistance , maximum at 20℃

Propagation delay at100 MHz (ns/100m)

Delay Skew

Mutual Capacitance

Nominal Velocity of Propagation (NVP)

Coupling attenuation at 30℃

Operating Frequency, maximum

Cat6

100 ± 15 ohms

5 %

9.38 ohms/100 m

<536

≤45 ns

4.8 nF/100 m @ 1 kHz

69%

45MHz(dB)

250 MHz

Manufacturing Process Of Lan cable

SOME GREAT SHOT ON OUR MANUFACTURING PLANT

PRODUCTION FIGURES

We manufactures a comprehensive array of wires and cables to meet diverse market needs.

we supply a wide range of category 5e, category 6, category 6 A cable, Cat.7 cable. If this all seems a litle too technical for you, then why not get in touch with us.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

WARRANTY

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
